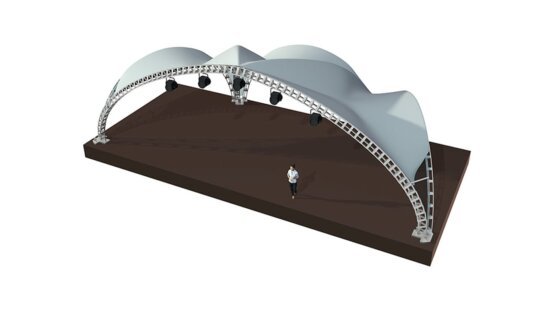

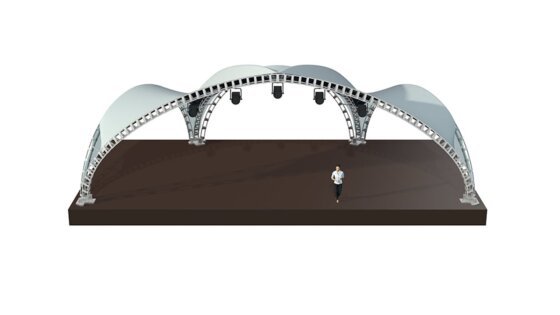

Scene 16×7
Description
New shapes, for those who are tired of standard scenes and looking for something unique. These types of scenes are mobile, quick to assemble, disassemble, and gives for the event vividness and memorability. It does not require any special foundation and can be mounted on any surface. The stage roof and walls are made of solid German PVC material. All frame construction elements are made of galvanized steel.
Dimensions
Area: 81,5 m²
Depth: 7 m
Height: 3,6-5,1 m
Width: 16 m
Specification
Name:
Arch scene Hexa AS-H80
Form:
Trapeze
Area:
81,5 m²
Depth:
7 m
Width:
16 m
Enterance arch heigh:
3,60 m
Roof ridge height:
5,10 m
Weight:
1250 kg
Wind load:
24 m / s
Maximum load on the arch:
30kg / l.m.
Fabric:
702 gr/sq m
Fire protection class:
M2, G1
Construction:
Galvanized steel
Installation time:
4-6 person - 4-6 val.
PVC „Halfmoon“:
Additionally
PVC wall “Solid” color – white:
Additionally
PVC wall “Sliding” color – white:
Additionally
PVC wall “Solid” color – transparent:
Additionally
PVC wall “Sliding” color – transparent:
Additionally
